Description

Flutec High Pressure Non Return Valve (NRV) also known as High Pressure Check Valve is designed as per German Technology for one directional flow regulation. Flutec team has specialized themselves in High Pressure application and so conventionally available non return valve in almost all major store cannot be the substitute of Flutec Non Return Valves (NRV). High Pressure application can be dangerous in case of failure. Flutec High Pressure Non Return Valves (NRV) / Check Valve are satisfactorily working in many locations in world. This compact design High Pressure Non Return Valve (NRV / Check Valve) are manufactured for High Pressure up to 1000bar (15000PSI) & have huge application in High Pressure Hydraulic Systems.
High Pressure 2 way Ball Valve, High Pressure 3 way Ball Valves, High Pressure 4 Way Ball Valves, Manifold Block Mounting Ball Valve, SS Three Way High Pressure Ball Valve, Stainless Steel Two Way High Pressure Ball Valves, S S Four Way High Pressure Ball Valves, CS / MS / Brass High Pressure Ball Valves, Female Thread High Pressure Ball Valves, Screwed End High Pressure Ball Valves, BSP Thread High Pressure Ball Valves

Features of Flutec High Pressure Non Return Valves (NRV) / Check Valve:

Working pressure up to 1000 bar (Standard Range 500 bar / 7500 PSI).
Working temperature depending upon sealing material – 20°C to + 250°C
Flow up to 600 LPM
Individual pressure testing ensures safety.
Hexagonal housing available in carbon steel phosphate plated.
Other metallic finish on request.
Are also manufactured in stainless steel & Brass material.

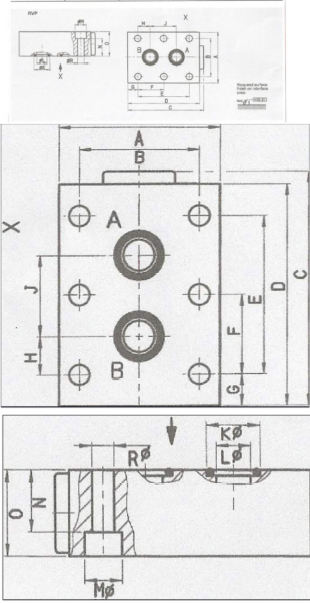

Manifold Block Mounting Non Return Valves / Check Valve also can be supplied

Pressure Rating up to 1000 bar (Standard Range 500 bar / 7500 PSI))
Temperature Rating -20°C to +250°C
Size Range 1/4” to 2”
Material of Construction carbon steel / Stainless Steel (SS 304 / SS 316)
End Connection Screwed End (BSP, BSPT, NPT)
Flow Media Hydraulic Oil, Water, Gas, Air, cold water, hot water, steam, chemicals etc.
Application Material Handling Equipments, Earth Moving Machineries, Power generating Plants, Steel Manufacturing Plants, Mining Industries, Forklifts, Trucks / Trailers, Chemical Processing Machines etc
