Shut-Off Valve
Shut off flow Control Valve

Description

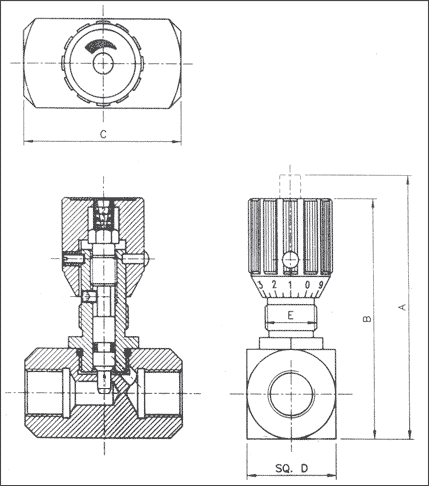

Flutec High Pressure Flow Control Valves without check valve also known as High Pressure Shut off Flow Control Valves are designed as per German Technology to permit a simple and accurate control of hydraulic fluid, with increasing number of turning of the control knob, starting from the closed position the flow increases evenly. The last turning of Knob of Flow Control Valve results in a complete opening of the flow passage. Flutec High Pressure Flow / Shut off Flow Control Valve is provided with coloured scale which permits a good repetition of settings and the coloured triangle allows visible indication of the flow control valve opening. Increase of the coloured triangle equals increased flow through the flow control valve. A setscrew is provided in the side of the knob to lock the Shut off flow control valve in set position to comply with safety standards.
High Pressure Flow Control Valve, Manifold Mounting Flow Control Valves, Two Way High Pressure Flow Control Valve, SS 2 Way High Pressure Flow Control Valves, Manifold Block Mounting Flow Control Valves

Features of Flutec High Pressure Flow Control Valves without check valve / Shut Off Flow Control Valve:

• Working pressure up to 1000 bar (Standard Range 500 bar / 7500 PSI).
• Working temperature depending upon sealing material – 20°C to + 250°C
• Easy rotation of knob even at high pressure.
• Individual pressure testing ensures safety.
• Block housing available in carbon steel phosphate plated.
• Other metallic finish on request.
• Are also manufactured in stainless steel & Brass material.

Pressure Rating : up to 1000 bar (Standard Range 500 bar / 7500 PSI).
Temperature Rating :

-20°C to +250°C
Size Range :

1/8” to 2”
Material of Construction :

carbon steel / Stainless Steel (SS 304 / SS 316)
End Connection :

Screwed End (BSP, BSPT, NPT)

Flow Media

 : Hydraulic Oil, Water, Gas, Air, cold water, hot water, steam, chemicals etc.
Application :

Material Handling Equipments,  Earth Moving Machineries, Power generating Plants, Steel Manufacturing Plants, Mining Industries, Forklifts, Trucks / Trailers, Chemical Processing Machines etc.
